Aluminium Stranded Conductor Bare Conductor Wire 50mm² Total Area Custom Design

All Aluminum Conductor Aluminium Stranded Conductor AAC ASTm B 231/B 231m Rose Iris Tulip

APPLICATION

AAC conductor full name as all aluminum conductor is primarily for overhead transmission and primary and secondary distribution, where ampacity must be maintained and a lighter conductor (compared to ACSR) is desired, and when conductor strength is not a critical factor

STANDARD

Aluminum stranded conductor are basic design to BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 standards

Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

CONSTRUCTION

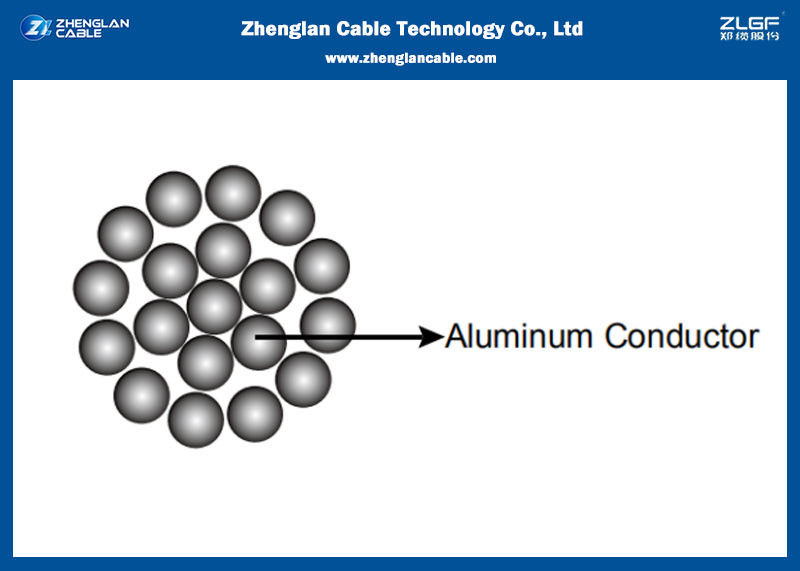

A concentric lay stranded conductor consisting of Aluminum Alloy 1350-H19 wires. AAC is available in both single layer and multi-layer constructions

Notes:

AAC ampacity based on 75 ºC conductor temp, 25 ºC ambient, 2ft1s wind, 961 watts/sq. foot sun, 0.5 coefficients of emissivity and absorption

All aluminum conductor TECHNICAL DATA

Factory show

Why you choose us?

OEM/ODM services provided;

Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;

Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;

Registered capital of $30 million and factory covers an area of 60,000㎡;

Advanced test equipment and procedures, 100% inspection before factory;

Enough stocks and the higest efficient shipping time guarranteed;

Professional pre-sales and after-sales services provided
