Szczegóły produktu
Miejsce pochodzenia: Henan, Chiny
Nazwa handlowa: Zhenglan Cable
Orzecznictwo: ISO 9001:2015，ISO 14001:2005
Numer modelu: AAAAC
Warunki płatności i wysyłki
Minimalne zamówienie: Zbywalny
Cena: Zbywalny
Szczegóły pakowania: W pełni drewniany bęben, stalowy bęben drewniany, w pełni stalowy bęben lub dostosowany
Czas dostawy: 15-30 dni
Zasady płatności: Akredytywa, T/T,
Możliwość Supply: 100 km/miesiąc
Tworzywo: |
Stop aluminium |
Rozmiar: |
od 1 mm do 630 mm |
Jakość: |
Test 100% |
Standard:: |
Konstrukcja zgodna z DIN 48201, BS 215, IEC 60189, ASTM-B231, CSA C49 |
Bezludny: |
NIE |
certyfikowany: |
ISO 9001:2015, ISO 14001:2005, CE |
Tworzywo: |
Stop aluminium |
Rozmiar: |
od 1 mm do 630 mm |
Jakość: |
Test 100% |
Standard:: |
Konstrukcja zgodna z DIN 48201, BS 215, IEC 60189, ASTM-B231, CSA C49 |
Bezludny: |
NIE |
certyfikowany: |
ISO 9001:2015, ISO 14001:2005, CE |
AAAC Bare Conductor Wire / All Aluminum Alloy Conductor cover from 1mm-630mm
The all aluminum alloy conductor is one of the most common bare conductors in our life and industry production. T is usually short as and to be used for bare overhead transmission cable and as primary and secondary distribution cable
All Aluminum Alloy Conductor APPLICATION
AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.
STANDARD
All Aluminum Alloy Conductor are basic design to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201-6 standards.
All Aluminum Alloy Conductor CONSTRUCTION PARAMETERS
ASTm B 399/B 399m
| Nominal Area | Stranding | Overall Diameter |
Weight | Rated Strength |
Electrical Resistance |
Current Rating* |
|
| AWG&MCM | mm² | No.x mm | mm | Kg/Km | KN | Ω/Km | A |
| 6 | 13.2 | 7/1.55 | 4.65 | 36.2 | 4.18 | 2.5361 | 69 |
| 4 | 21.1 | 7/1.96 | 5.88 | 57.9 | 6.69 | 1.586 | 93 |
| 2 | 33.5 | 7/2.47 | 7.41 | 92 | 10.6 | 0.9987 | 123 |
| 0 | 53.5 | 7/3.12 | 9.36 | 146.8 | 17 | 0.62592 | 165 |
| 2/0 | 67.3 | 7/3.50 | 10.5 | 184.8 | 20.4 | 0.49738 | 190 |
| 3/0 | 84.9 | 7/3.93 | 11.79 | 233 | 25.7 | 0.3945 | 219 |
| 4/0 | 107 | 7/4.42 | 13.26 | 294.7 | 32.5 | 0.31188 | 253 |
| 250 | 126 | 19/2.91 | 14.55 | 346.7 | 38.8 | 0.26509 | 280 |
| 500 | 253 | 19/4.12 | 20.6 | 695 | 74.2 | 0.13224 | 429 |
| 550 | 279 | 37/3.10 | 21.7 | 766.2 | 83.9 | 0.11995 | 455 |
| 1000 | 508 | 37/4.18 | 29.26 | 1393 | 146 | 0.06597 | 653 |
| 1250 | 631 | 61/3.63 | 32.67 | 1732 | 179 | 0.05306 | 743 |
BS EN 50182
| Code | Stranding | Nominal Area | Overall Diameter |
Weight | Rated Strength |
Electrical Resistance |
Current Rating* |
| No.x mm | mm² | mm | Kg/Km | KN | Ω/Km | A | |
| Box | 7/1.85 | 18.8 | 5.55 | 51.4 | 5.55 | 1.748 | 87 |
| Acacia | 7/2.08 | 23.8 | 6.24 | 64.9 | 7.02 | 1.3828 | 101 |
| Almond | 7/2.34 | 30.1 | 7.02 | 82.2 | 8.88 | 1.0926 | 116 |
| Cedar | 7/2.54 | 35.5 | 7.62 | 96.8 | 10.46 | 0.9273 | 129 |
| Holly | 7/3.91 | 84.1 | 11.73 | 229.5 | 24.79 | 0.3913 | 219 |
| Oak | 7/4.65 | 118.9 | 13.95 | 324.5 | 35.07 | 0.2767 | 272 |
| Mulberry | 19/3.18 | 150.9 | 15.9 | 414.3 | 44.52 | 0.2192 | 314 |
| Elm | 19/3.76 | 211 | 18.8 | 579.2 | 62.24 | 0.1568 | 386 |
| Poplar | 37/2.87 | 239.4 | 20.09 | 659.4 | 70.61 | 0.1387 | 416 |
| Totara | 37/4.14 | 498.1 | 28.98 | 1372.1 | 146.93 | 0.0666 | 648 |
| Rubus | 61/3.50 | 586.9 | 31.5 | 1622 | 173.13 | 0.0567 | 714 |
| Sorbus | 61/3.71 | 659.4 | 33.39 | 1822.5 | 194.53 | 0.0505 | 764 |

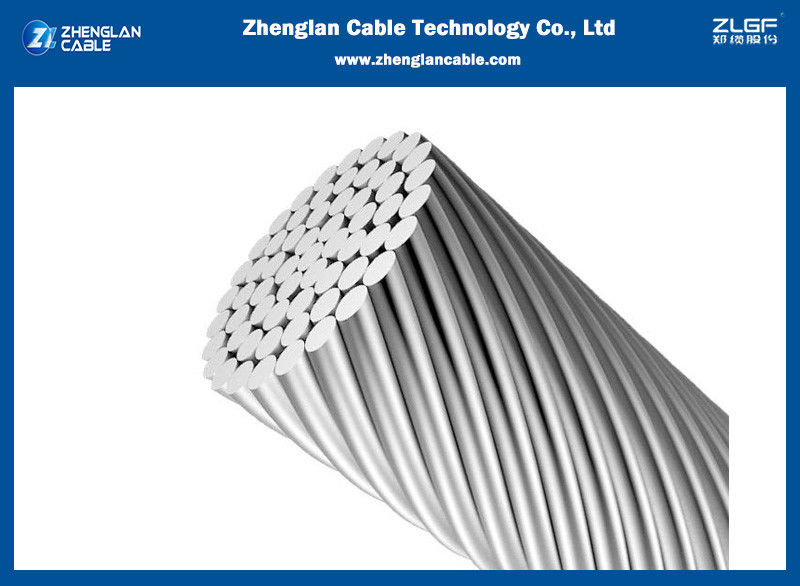

AAAC yew 479sqmm stranding 37wire with diameter 4.06mm all aluminum alloy conductor images
AAAC yew 479sqmm stranding 37wire with diameter 4.06mm all aluminum alloy conductor FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
