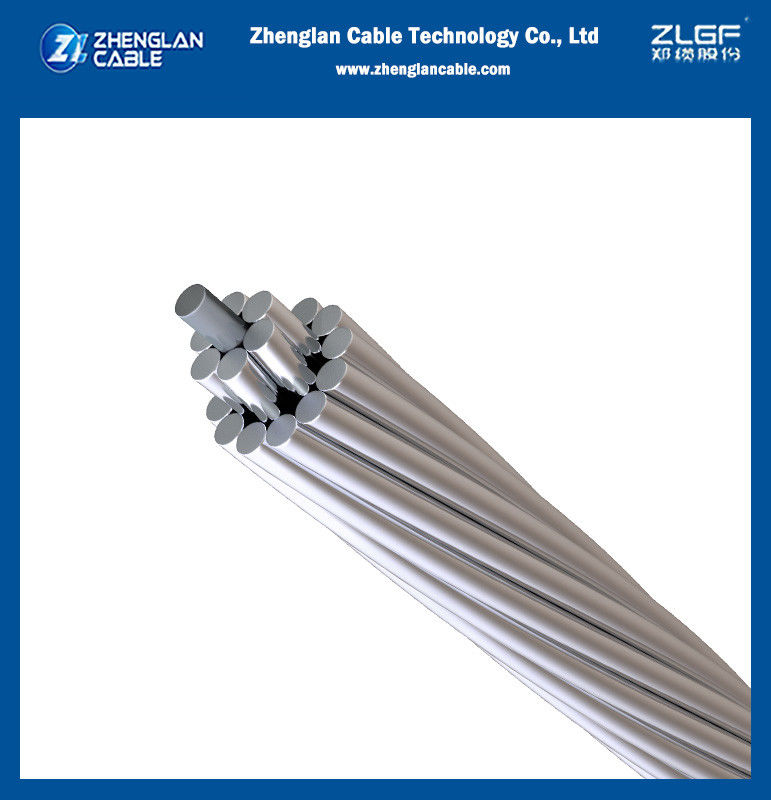

All-Aluminium Conductor（AAC）Cable 7x2.06mm2

AAC– All Aluminium Conductor

AAC are a refined Aluminium stranded conductor with a minimum metal purity of 99.7%. It is principally used in urban areas where spacing is short and the supports are close. It can be used in coastal regions owing to its high degree of corrosion resistance and is also used extensively within the Railway and Metro industries.

The stranded All Aluminium Conductor (AAC) are made up of concentric-lay-stranded aluminium wires only.
The conductor may be made up of 7, 19, 37, 61 or more wires in 1, 2, 3, 4 or more layers arounda central wire. Each successive layer shall have six more wires than the layer immediately beneath. For a given crosssectional area, the conductor becomes more flexible as the number of wires is increased(with a corresponding decrease in size of each wire).
When All Aluminium Conductors are to be used in overhead lines, full hard drawn temper wires are used. The illustration below show some typical stranding patterns.

About Zhenglan Cable

Zhenglan Cable Technology Co., Ltd has factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China. Oversea sales center locates in Zhengzhou city, Henan, about 10minutes walk to Zhengdong Railway station, 45minutes' drive to Xinzheng International Airport.

Our main products are

• overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
• 1-35kv overhead transmission line use insulated conductor
• power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
• power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
• 300/300V, 300/500V, 450/750V cotrol cable, house wire

Why Choose Zhenglan Cable:
OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.
